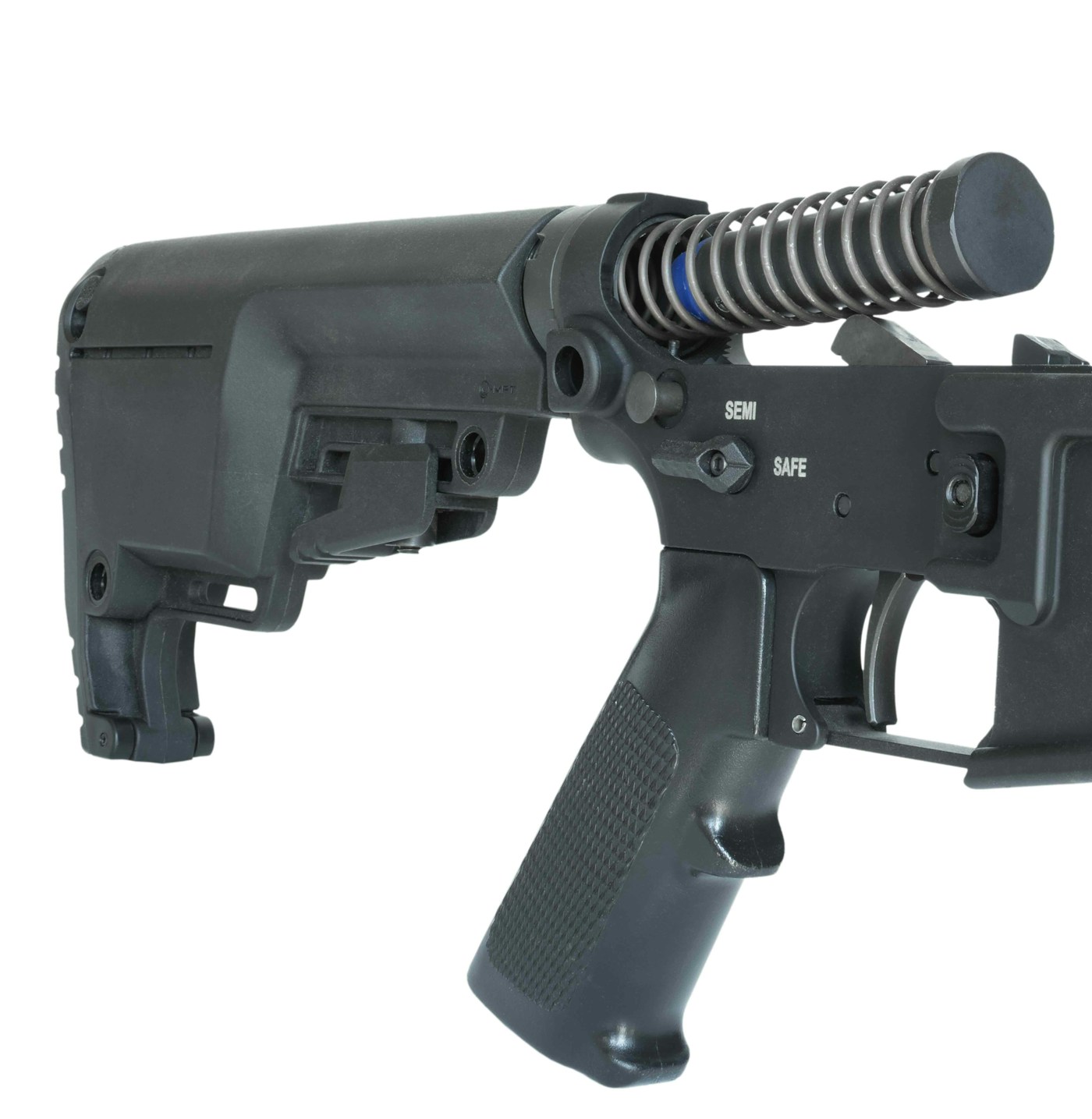

The buffer tube (also called the receiver extension) is a critical component of any AR-15 rifle, connecting the lower receiver to the stock while housing the buffer and recoil spring. The main difference between both mil-spec and commercial buffer tubes are the diameters and composition.
When building or upgrading an AR-15, one of the first decisions you’ll face is choosing between commercial and mil-spec buffer tubes. Though they may look similar at first glance, these two standards have significant differences that affect compatibility, performance, and durability.
This comprehensive guide breaks down everything you need to know about commercial and mil-spec buffer tubes to make an informed decision for your next build or upgrade.
Understanding Buffer Tube Basics
Before diving into the differences, let’s understand what the buffer tube actually does. According to Brownells, the buffer tube serves three essential functions:
- Houses the buffer and recoil spring that absorb and manage recoil
- Provides a mounting point for the stock
- Guides the bolt carrier group during its rearward and forward movement
The buffer system is crucial for the AR-15’s operation, making the choice between commercial and mil-spec an important consideration.
Key Differences Between Commercial and Mil-Spec Buffer Tubes
Diameter Differences
The most significant and immediately noticeable difference is the outer diameter at the stock end:
- Mil-Spec: 1.148 inches (29.16mm)
- Commercial: 1.168 inches (29.67mm)
This 0.02-inch difference might seem minor, but it’s enough to prevent cross-compatibility between stocks and buffer tubes. As Aero Precision explains, attempting to force a commercial stock onto a mil-spec tube (or vice versa) can damage components and create an unstable platform.
Material Composition
The materials used differ significantly between the two standards:
- Mil-Spec: Made from 7075-T6 aluminum alloy
- Commercial: Typically made from 6061-T6 aluminum alloy
According to Bravo Company USA, 7075-T6 aluminum offers approximately 1.5-2 times the tensile strength of 6061-T6, making mil-spec tubes generally stronger and more durable under stress.
Manufacturing Process
The production methods also differ:
- Mil-Spec: Features rolled threads (cold-formed)
- Commercial: Uses cut threads (machined)
Primary Arms notes that rolled threads are generally stronger because the metal grain structure remains intact during the forming process, while cut threads can create stress points where the grain structure is interrupted.
Profile Shape
Another subtle difference is the profile shape:
- Mil-Spec: Maintains a consistent diameter with a slight taper
- Commercial: Features a more pronounced sloping at the rear
This profile difference affects not only stock fit but also how the tube handles stress during operation.
Compatibility Considerations
Stock Compatibility
The diameter difference creates a one-way compatibility issue:
- Commercial stocks can only fit commercial buffer tubes
- Mil-spec stocks can only fit mil-spec buffer tubes
Forcing the wrong stock onto a buffer tube can result in excessive wobble (commercial stock on mil-spec tube) or inability to install properly (mil-spec stock on commercial tube).
Parts Interchangeability
Beyond stocks, other components may have compatibility issues:
- Castle nuts and end plates designed for one standard may not work properly with the other
- Some enhanced buffer systems like the VLTOR A5 are designed specifically for mil-spec dimensions
Performance and Durability
Strength Comparison
The material and manufacturing differences translate to performance disparities:
- Mil-Spec: The 7075-T6 aluminum with rolled threads provides superior strength, making it better suited for duty use, high round counts, and harsh conditions
- Commercial: While adequate for most civilian applications, the 6061-T6 aluminum with cut threads may not hold up as well under extreme use
Recoil Management
Both tube types function similarly in terms of basic recoil management, but the stronger mil-spec construction may maintain better alignment over time, especially with heavier buffers or in high-pressure cartridge builds.
Applications and Use Cases
Military and Law Enforcement
As the name suggests, mil-spec buffer tubes are the standard for military and law enforcement applications. The increased durability and standardization make them ideal for duty weapons that may see hard use.
Competition and Precision Shooting
Many competitive shooters prefer mil-spec tubes for their consistency and compatibility with a wider range of aftermarket stocks. The slightly stronger construction can also help maintain zero in precision applications.
Casual and Budget Builds
Commercial buffer tubes often appear in budget-friendly builds and entry-level rifles. For casual shooters who don’t subject their rifles to extreme conditions, commercial tubes can provide adequate performance at a lower cost.
Historical Context
The dual standards emerged for practical reasons. Mil-spec tubes were the original design used in military M16/M4 rifles. Commercial tubes were later developed as a cost-saving alternative for the civilian market, where the extreme durability requirements of military use weren’t as necessary.
This divergence has created a situation where both standards persist in the market, with mil-spec gradually becoming more dominant even in civilian applications due to its broader compatibility with aftermarket parts.
Making the Right Choice
When to Choose Mil-Spec
Consider a mil-spec buffer tube if:
- You want maximum compatibility with aftermarket stocks
- Durability is a primary concern
- You’re building a duty, competition, or defensive rifle
- You plan to upgrade or change stocks frequently
- You’re building a clone of a military rifle
When to Choose Commercial
A commercial buffer tube might be appropriate if:
- You’re on a tight budget
- You already have a commercial stock you want to use
- You’re building a casual range rifle
- Your rifle won’t see high round counts or harsh conditions
- You’re replacing a tube on a rifle that came with commercial specs
Installation and Measurement Tips
Verifying Specifications
Before purchasing a stock or buffer tube, verify which specification you need:
- Measure existing components with calipers
- Check manufacturer specifications
- Look for “mil-spec” or “commercial” markings (though these aren’t always present)
Proper Installation
When installing either type:
- Apply proper torque to the castle nut (30-40 ft-lbs)
- Consider using thread locker or staking the castle nut
- Ensure the buffer retainer and spring are properly seated
- Check for smooth buffer and spring operation before completing assembly
Current Market Trends
The market has been shifting increasingly toward mil-spec as the de facto standard. Most quality manufacturers now produce mil-spec tubes exclusively, and the majority of new stock designs are mil-spec compatible.
This trend means greater availability of mil-spec components and potentially fewer commercial options in the future, though commercial tubes remain common in budget rifles and older designs.
Conclusion
While both commercial and mil-spec buffer tubes will function in an AR-15, the differences in diameter, materials, and manufacturing create meaningful distinctions in compatibility, durability, and performance.
For most builders, mil-spec buffer tubes offer advantages in terms of parts compatibility and durability, making them the preferred choice despite their slightly higher cost. Commercial tubes remain viable for budget builds and casual use, but their limited compatibility with aftermarket components can restrict future upgrade options.
When building or upgrading your AR-15, carefully consider your intended use, budget, and existing components to determine which buffer tube specification best meets your needs. By understanding these differences, you can make an informed decision that ensures reliable function and compatibility for your rifle.
